Butt Fusion HDPE Fittings
Butt fusion HDPE fittings are used to create strong, leak-resistant connections in HDPE pipe systems. They are joined by heating and fusing the pipe and fitting ends together, forming a continuous and durable connection after cooling.Available in elbows, tees, reducers, stub ends, flanges, end caps, and custom fittings, they are suitable for water supply, drainage, irrigation, mining, municipal, and industrial pipeline projects. Made from PE80 or PE100 materials, these fittings offer good corrosion resistance, impact strength, and long service life.
- Place of Origin: China
- Standard: ISO 4427 Standards, AS/NZS 4130 Standards, ASTM Standards
- Inventory: In Stock
- Type: Butt Fusion Fittings for HDPE Pipe
- Material: High-Density Polyethylene
- Price: Negotiation
- Delivery: 7-15 Days Depending on The Total Quantity
- Payment: L/C, T/T, Alipay, Moneygram and Western Union
Butt Fusion Fittings for HDPE Pipe
Butt Fusion HDPE Fittings Size Chart
| Product Type | Specifications | Thickness | Size |
|---|---|---|---|
| Butt Fusion Reducer | S63*25-S1200*1000 | SDR17、SDR11 | Metric & Custom |
| Butt Fusion Stub End Long Neck | FL63-FL315 | SDR17、SDR11 | Metric & Custom |

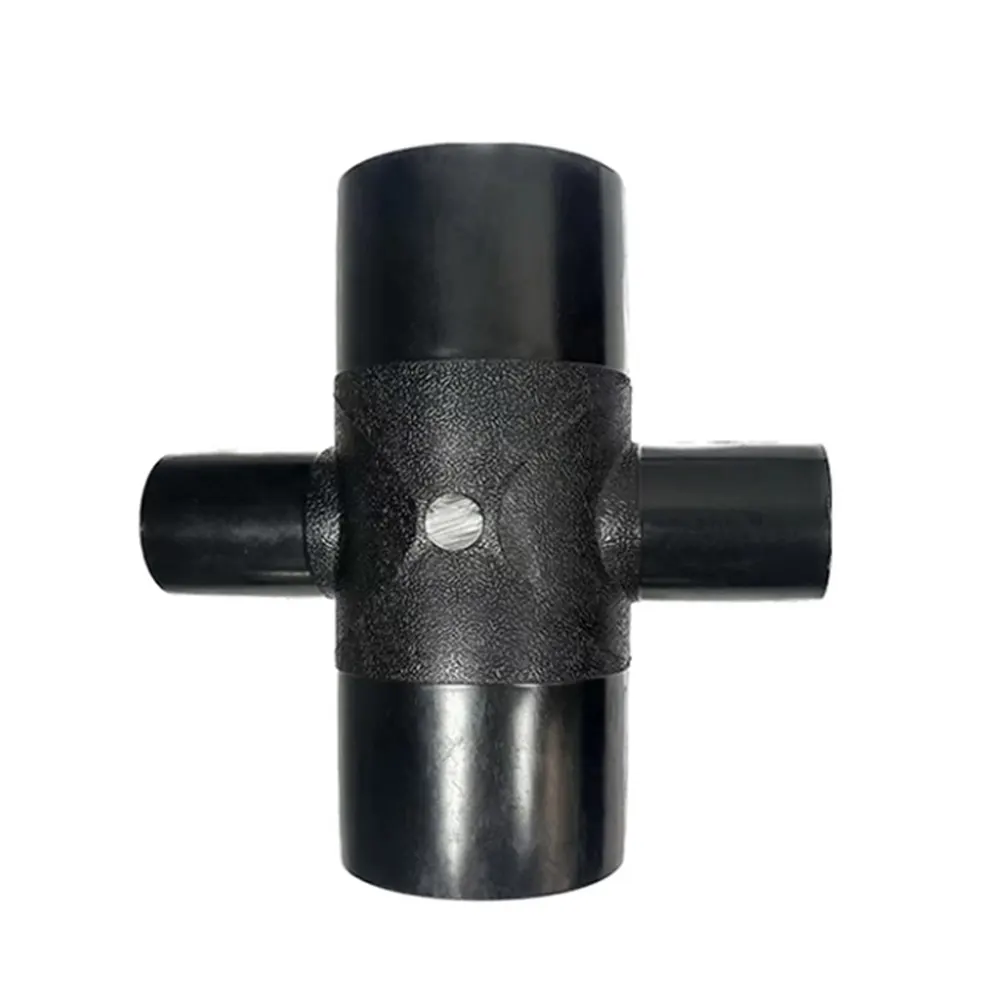

| Butt Fusion Reducing Cross Tee | +90*63-+800*630 | SDR17、SDR11 | Metric & Custom |

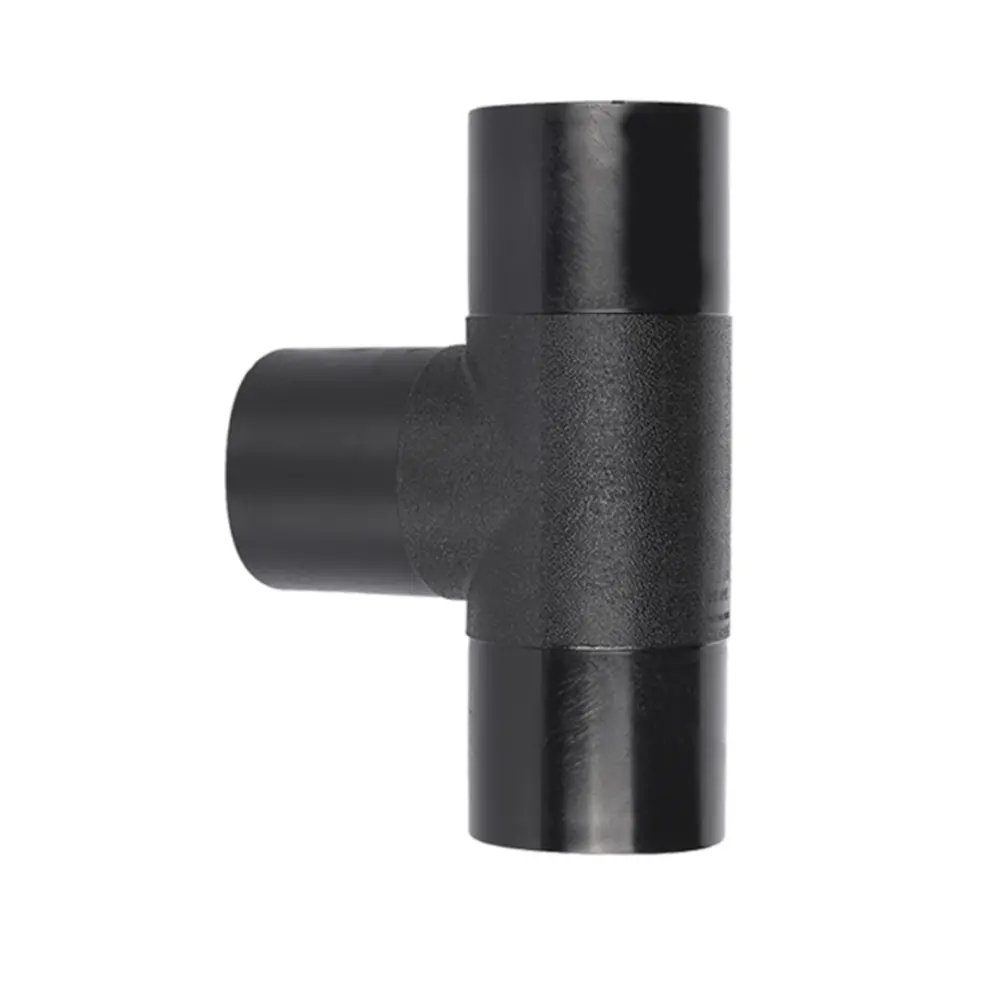

| Butt Fusion Equal Tee | T50-T800 | SDR17、SDR11 | Metric & Custom |

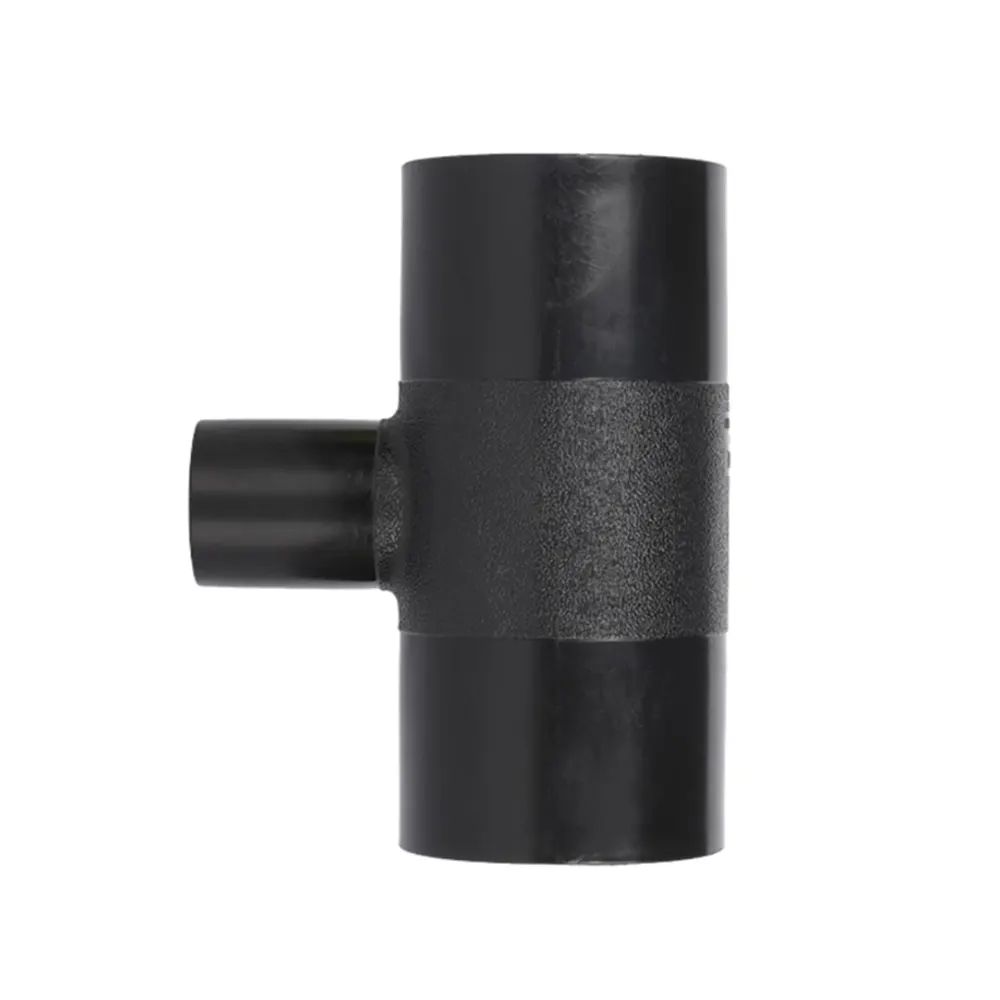

| Butt Fusion Reducing Tee | T63*25-T800*710 | SDR17、SDR11 | Metric & Custom |
| Butt Fusion 45° Branch Y Tee | YT63*45°-YT315*45° | SDR17、SDR11 | Metric & Custom |

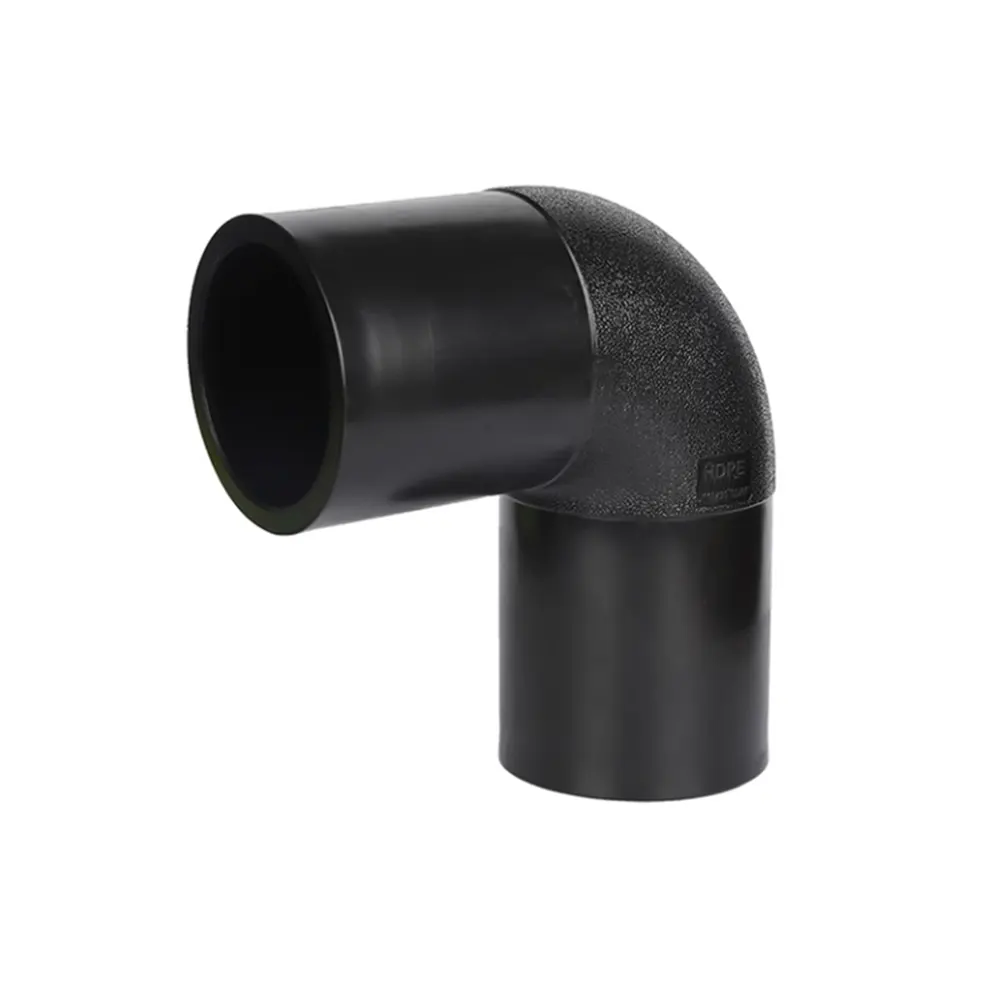

| Butt Fusion 90° Elbow | L50*90°-L800*90° | SDR17、SDR11 | Metric & Custom |
| Butt Fusion 45° Elbow | L50*45°-L800*45° | SDR17、SDR11 | Metric & Custom |

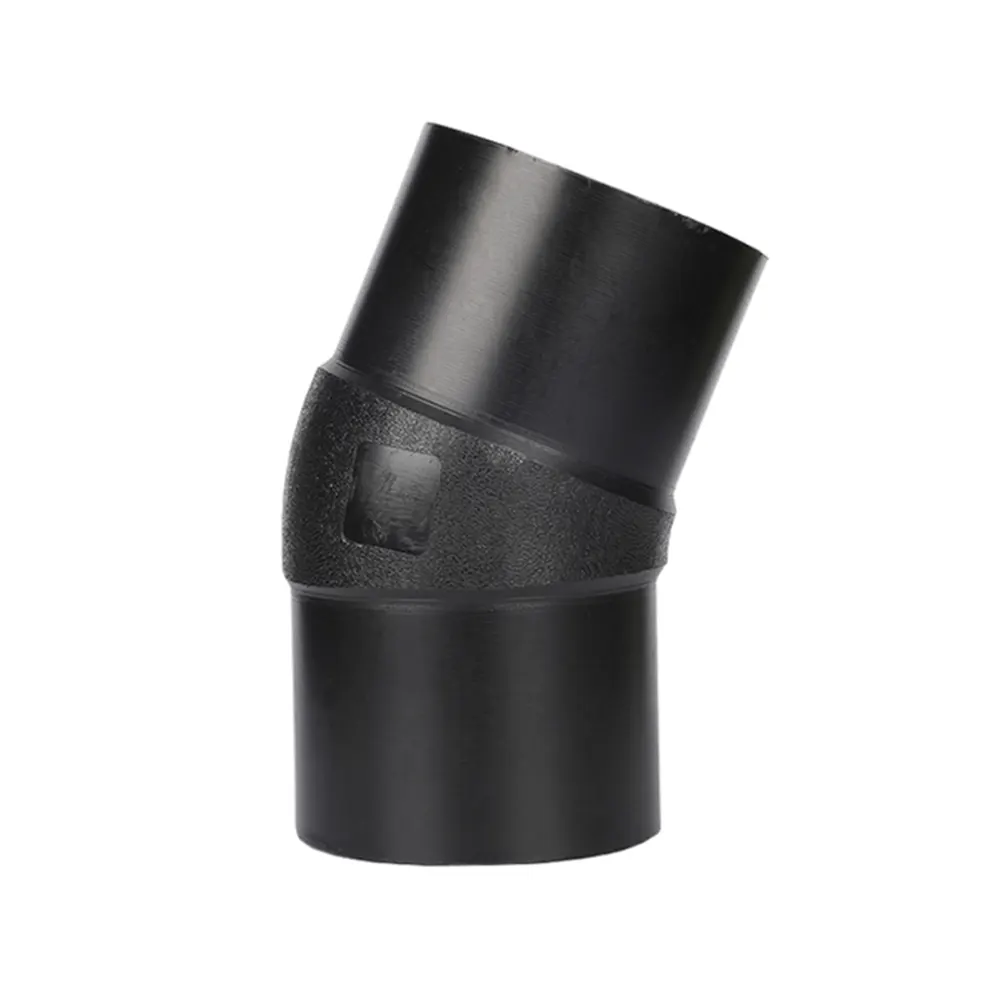

| Butt Fusion 22.5° Elbow | L90*22.5°-L800*22.5° | SDR17、SDR11 | Metric & Custom |
| Butt Fusion Stub End | FL50-FL1200 | SDR17、SDR11 | Metric & Custom |

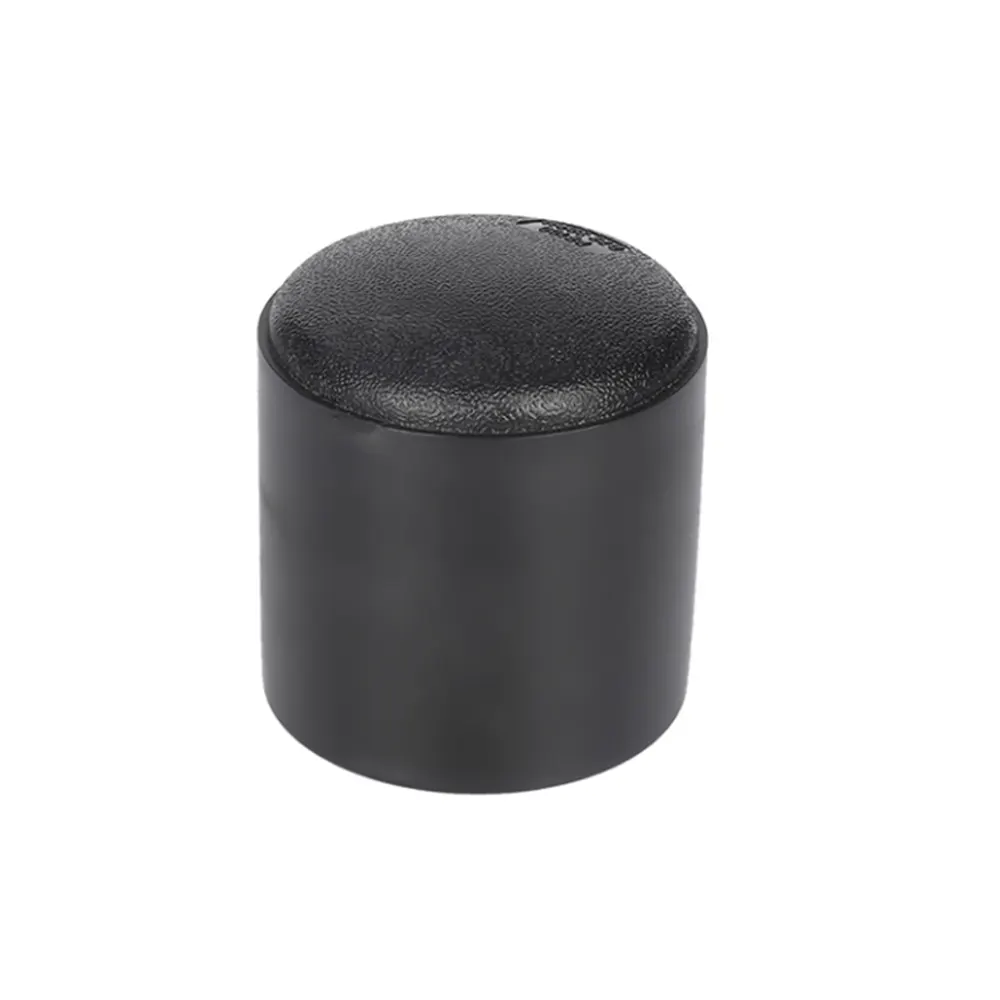

| Butt Fusion End Cap | D63-D1200 | SDR17、SDR11 | Metric & Custom |

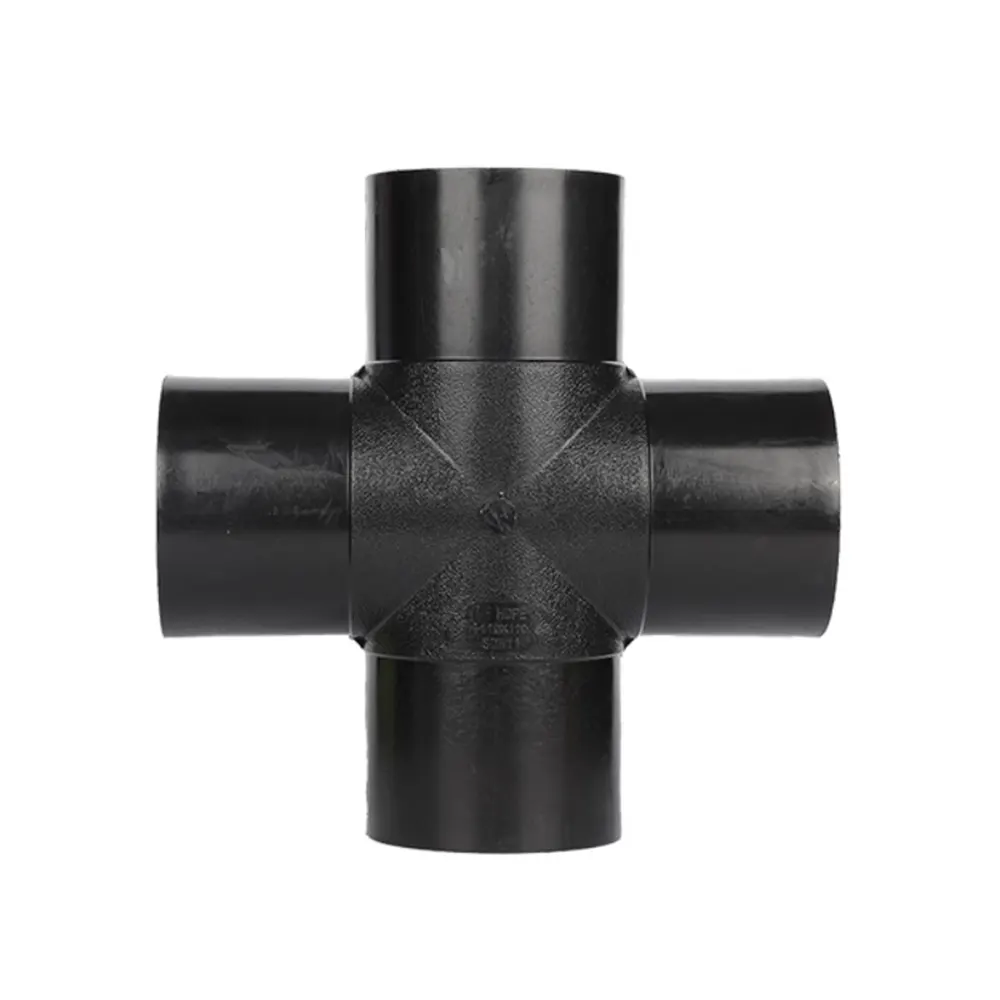

| Butt Fusion Cross Tee | +63-+800 | SDR17、SDR11、SDR13.6 | Metric & Custom |
| Other | Customization is available beyond standard sizes |
Butt Fusion HDPE Pipe Fittings Key Features
Pressure Resistance
Built to handle higher working pressure in demanding pipeline systems.
Reinforced Structure
Thickened structure improves strength and stability under heavy load.
Precision Sealing
Sealing components are designed for tight contact and stable pressure performance.
Corrosion Protection
Protective coating helps resist moisture, corrosion, and harsh site conditions.
HDPE Butt Fusion Fittings Advantages
- Long Service Life – Made from quality PE80 or PE100 material, supporting stable use in long-term pipeline projects.
- Strong Welded Joint – Butt fusion welding forms an integrated connection between pipe and fitting for reliable performance.
- Good Impact Strength – Tough HDPE material helps fittings resist impact during transport, installation, and operation.
- Corrosion Resistance – Resistant to rust, scaling, and many chemicals commonly found in soil and water systems.

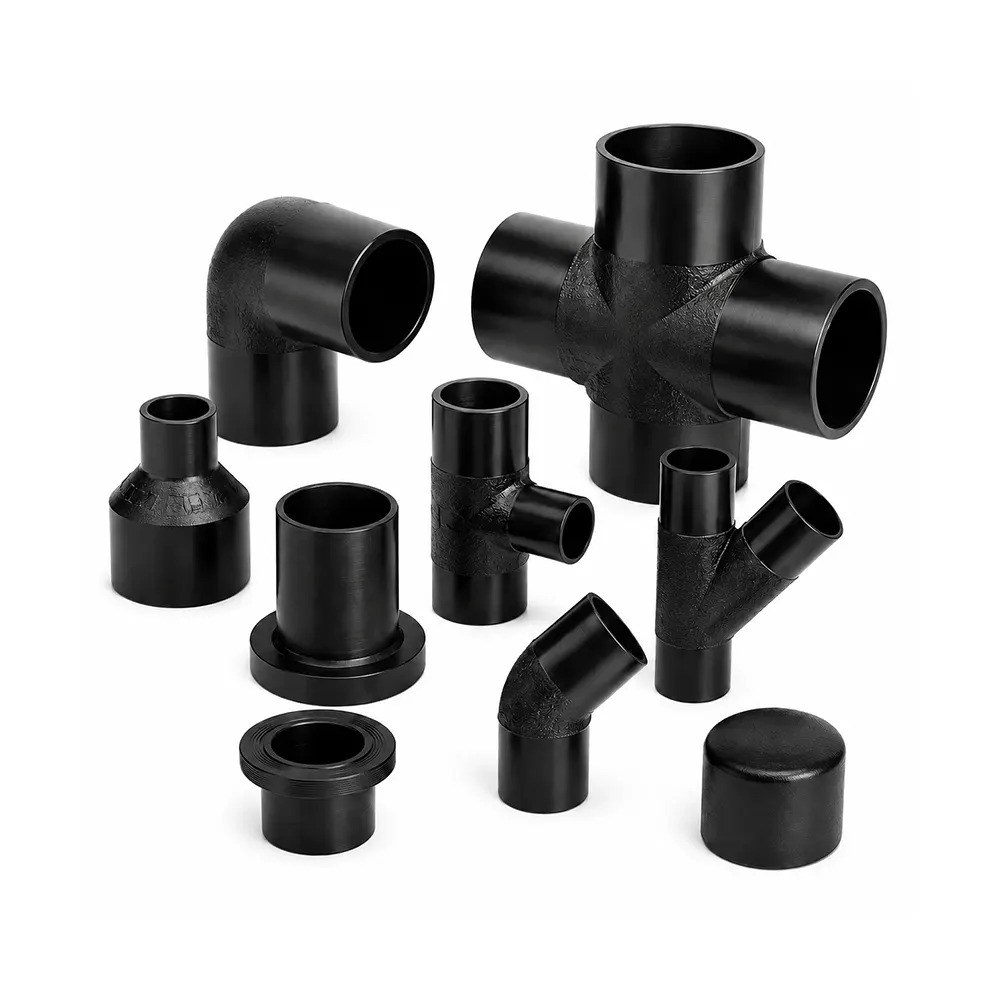

- Wide Size Availability – Available in elbows, tees, reducers, stub ends, flanges, end caps, and custom fabricated fittings.
- Suitable for Large Projects – Commonly used in water supply, drainage, irrigation, mining, municipal, and industrial pipelines.
Butt Fusion HDPE Pipe Fittings Application
Butt Fusion HDPE pipe fittings are essential components in HDPE pipeline systems, providing secure, leak-resistant, and long-lasting connections for a wide range of infrastructure and industrial applications.
- Water supply systems
- Drainage and sewage systems
- Agricultural irrigation projects
- Mining operations
- Municipal engineering
- Industrial pipeline systems
Inventory
JQ maintains stable inventory and efficient production capacity to ensure fast delivery and reliable supply for projects of all sizes. With organized warehouse management, flexible manufacturing, and customization support, we help customers meet demanding project timelines efficiently.
Packaging
JQ provides professional packaging, efficient loading, and reliable transportation solutions to ensure products are delivered safely and on time. With stable inventory and global shipping support, we help customers meet project schedules with confidence.
Certificate
