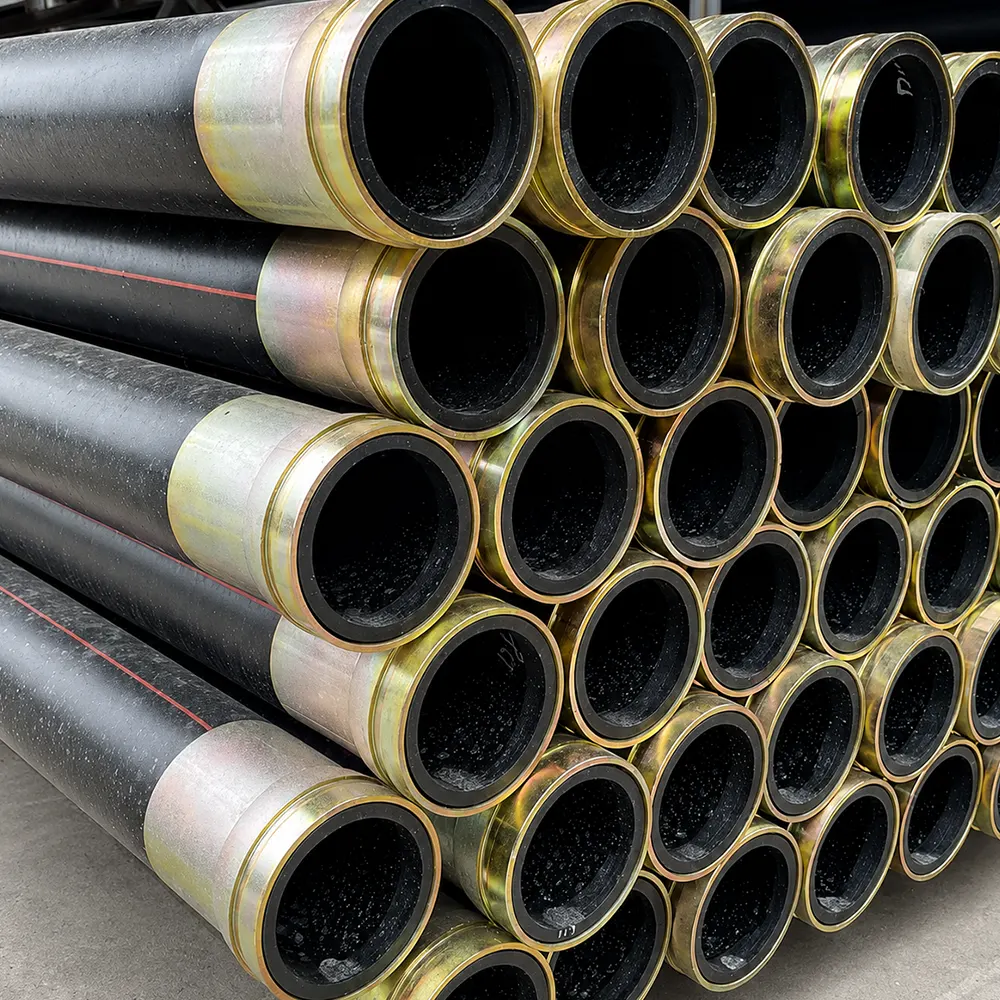

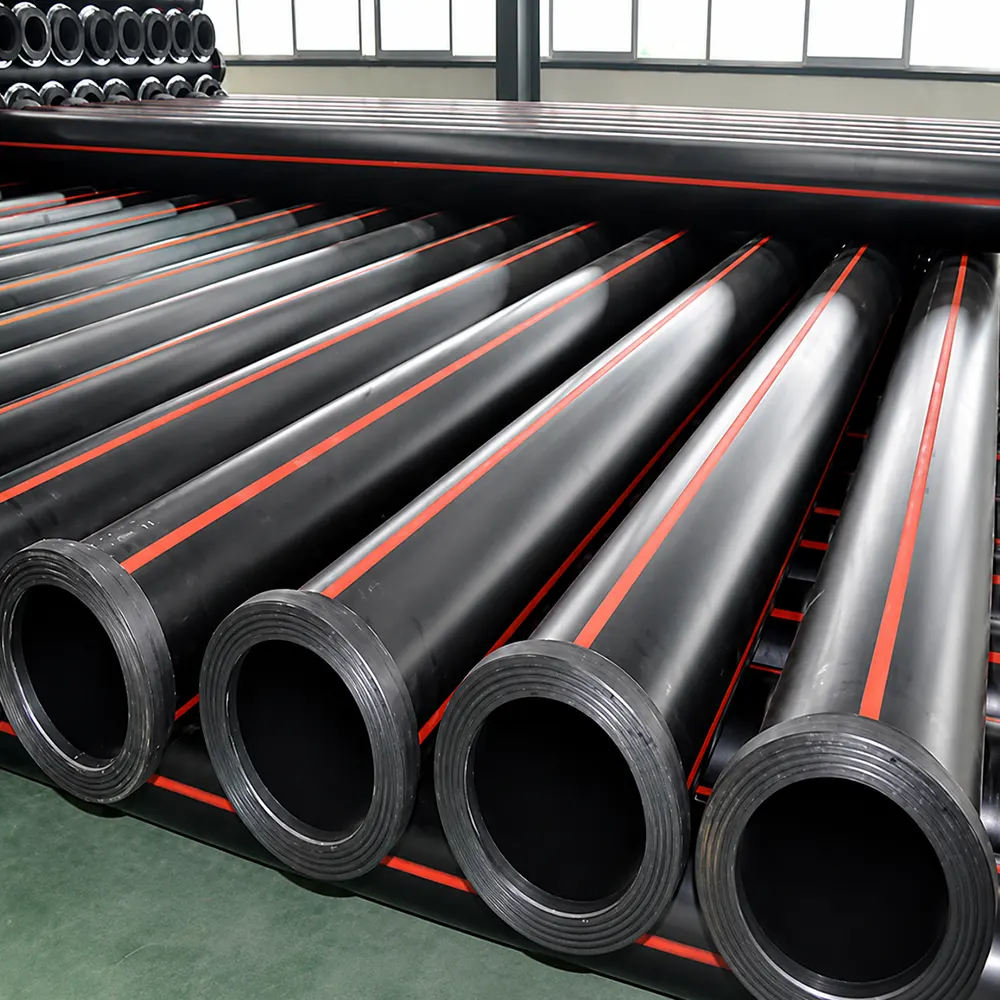

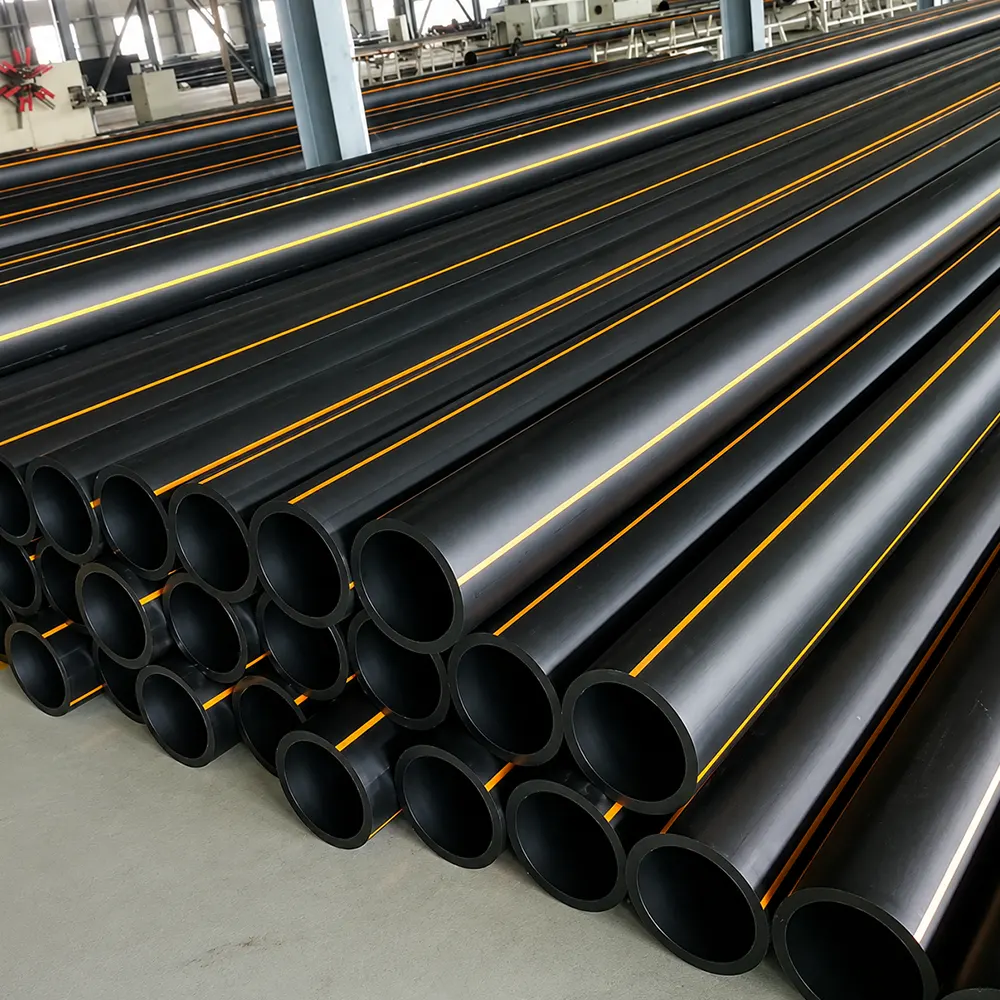

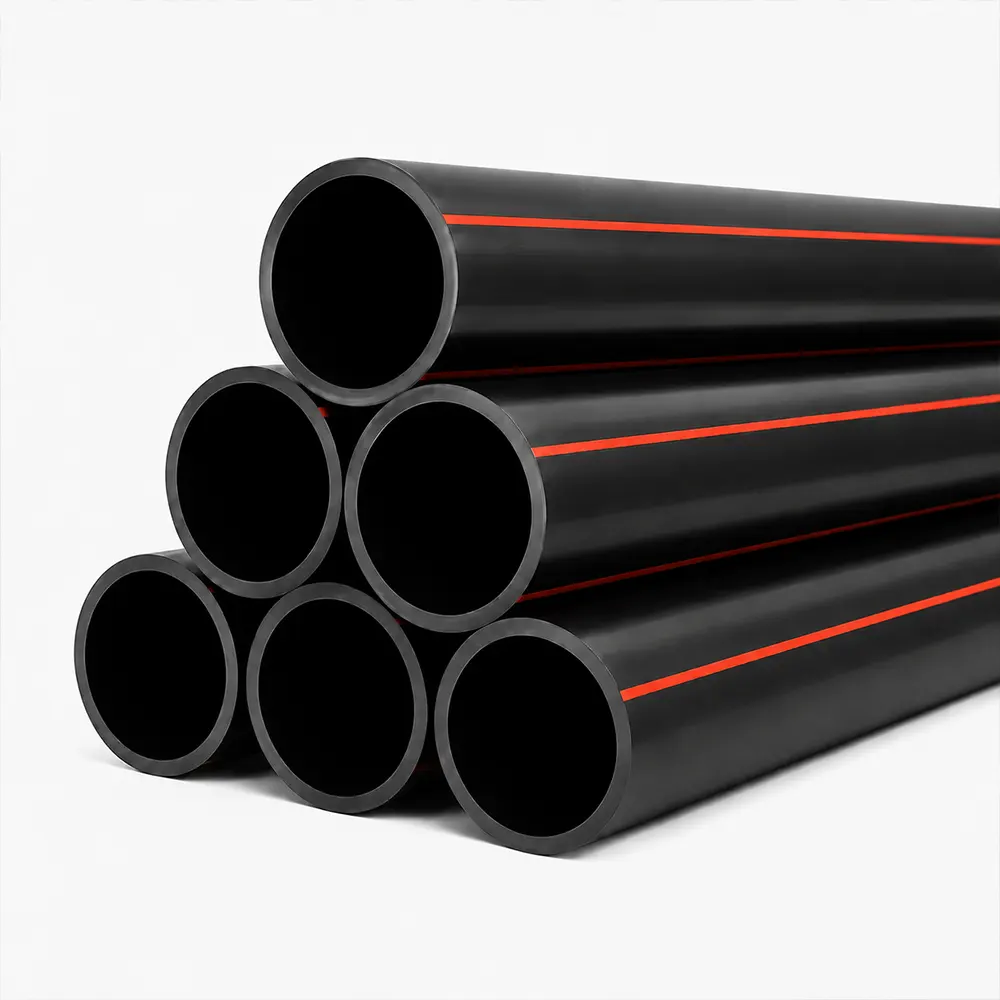

HDPE Pipe Mining
HDPE Mining Pipe is a high-performance piping solution engineered for demanding mining applications such as slurry transport, tailings discharge, mine dewatering, and industrial water supply. Manufactured from premium high-density polyethylene material, it offers outstanding abrasion resistance, corrosion resistance, impact strength, and flexibility, ensuring reliable performance even in harsh mining environments. Compared with traditional steel pipes, HDPE mining pipes are lightweight, easy to install, leak-free, and require minimal maintenance, helping reduce operating costs and extend service life. Widely used in open-pit mines, mineral processing plants, dredging projects, and underground mining systems, HDPE pipes provide a durable and cost-effective solution for modern mining pipeline networks.
- Place of Origin: China
- Inventory: In Stock
- Type: HDPE Pipe Mining
- Material: High-Density Polyethylene
- Diameter: DN20-2000mm (1/2 inch-80 inch)
- Length: 6m / 9m / 12m or Customized
- Standard: ISO 4427 Standards, AS/NZS 4130 Standards, ASTM Standards
- Price: Negotiation
- Delivery: 7-10 Days Depending on The Total Quantity
- Payment: L/C, T/T, Alipay, Moneygram and Western Union
Mining HDPE Pipe Technical Specifications
| ASTM F714 SDR |
SDR 33 | SDR 26 | SDR 21 | SDR 17 | SDR 13.6 | SDR 11 | SDR 9 | SDR 7.4 | |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Pressure (PE 100) |
PN5 (0.5Mpa) |
PN6 (0.6Mpa) |
PN8 (0.8Mpa) |
PN10 (1.0Mpa) |
PN12.5 (1.25Mpa) |
PN16 (1.6Mpa) |
PN20 (2.0Mpa) |
PN25 (2.5Mpa) |
|
| Nominal Size DN (mm) |
Equiv Size (in) |
Wall Thickness(mm) | |||||||
| 16 | 2 | 2.3 | |||||||
| 20 | 0.79 | 1.5 | 2 | 2.3 | 3 | ||||
| 25 | 0.98 | 0.76 | 0.8 | 1.2 | 1.5 | 2 | 2.3 | 3 | 3.5 |
| 32 | 1.26 | 0.97 | 1 | 1.5 | 2 | 2.4 | 3 | 3.6 | 4.4 |
| 40 | 1.57 | 1.21 | 1.2 | 2 | 2.4 | 3 | 3.7 | 4.5 | 5.5 |
| 50 | 1.97 | 1.52 | 2 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | 6.9 |
| 63 | 2.48 | 1.91 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 |
| 75 | 2.95 | 2.27 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 |
| 90 | 3.54 | 2.73 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 |
| 110 | 4.33 | 3.33 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | 12.3 | 15.1 |
| 125 | 4.92 | 3.79 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | 14 | 17.1 |
| 140 | 5.51 | 4.24 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 |
| 160 | 6.3 | 4.85 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 |
| 180 | 7.09 | 5.45 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 |
| 200 | 7.87 | 6.06 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 |
| 225 | 8.86 | 6.82 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 |
| 250 | 9.84 | 7.58 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 |
| 280 | 11.02 | 8.48 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 |
| 315 | 12.4 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
| 355 | 13.98 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
| 400 | 15.75 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
| 450 | 17.72 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
| 500 | 19.69 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | 67.6 |
| 560 | 22.05 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | 75.7 |
| 630 | 24.8 | 19.3 | 24.1 | 30 | 37.4 | 46.3 | 57.2 | 70.3 | 85.1 |
| 710 | 27.95 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | 95.9 |
| 800 | 31.5 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | |
| 900 | 35.43 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | ||
| 1000 | 39.37 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | ||
| 1200 | 47.24 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | |||
| 1400 | 55.12 | 42.9 | 53.5 | 66.7 | 82.4 | 102.9 | |||
| 1600 | 62.99 | 61.2 | 76.2 | 94.1 | 117.6 | ||||
| 1800 | 70.86 | 69.1 | 85.7 | 105.9 | |||||
| 2000 | 78.74 | 76.9 | 95.2 | 117.6 | |||||
HDPE Pipe Key Features
Long Service Life
Designed specifically to ensure stable, long-term performance, it boasts a normal service life exceeding 50 years.
High Impact Strength
Excellent flexibility and impact resistance reduce the risk of cracking, even under heavy loads and rough terrain.
Abrasion Resistance
Designed to handle abrasive slurry and solid particles, ensuring long-term durability in demanding mining environments.
Corrosion Resistance
Highly resistant to chemicals, acids, and corrosion, making it ideal for harsh underground and industrial conditions.

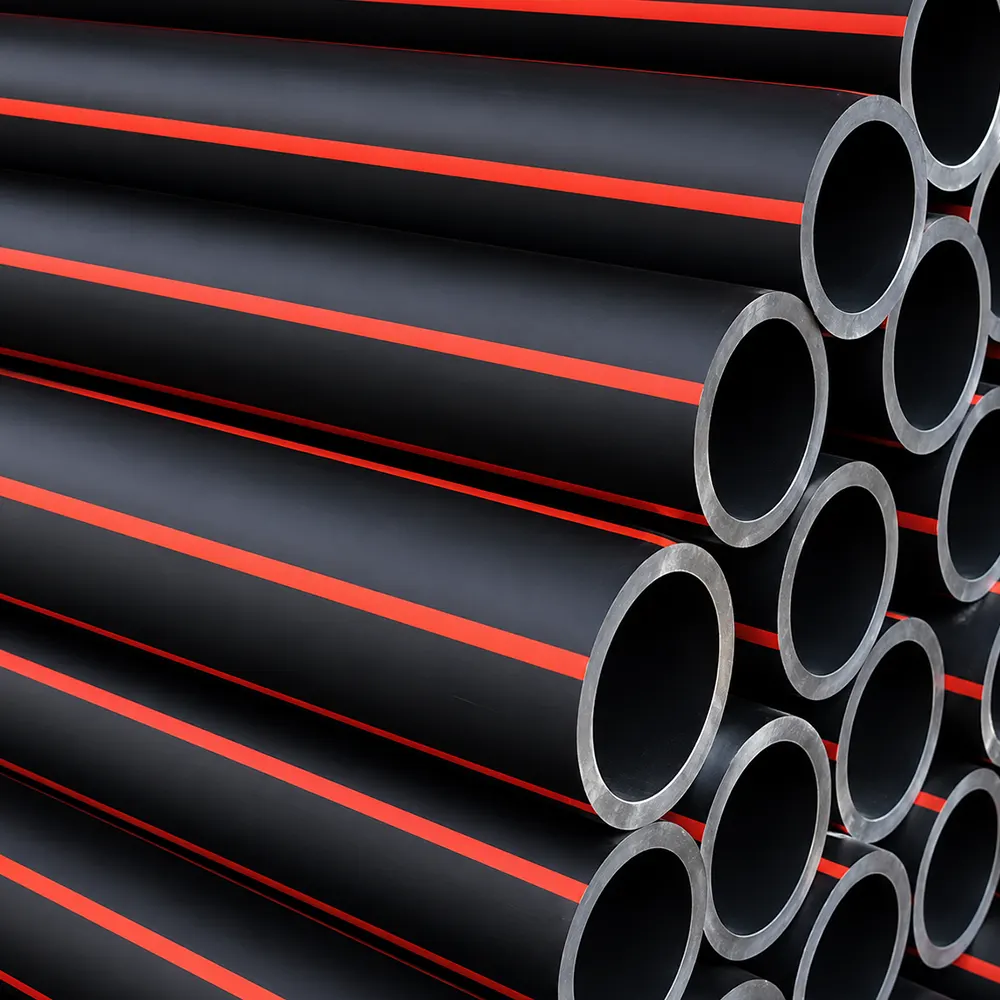

High Density Polyethylene Pipe Advantages
- The lightweight structure makes transportation, handling, and on-site installation faster and more economical compared with traditional metal pipelines.
- The smooth bore design minimizes friction loss, improves flow efficiency, and helps reduce energy consumption during fluid transportation.
- Advanced heat fusion welding creates fully sealed connections, reducing the risk of leakage and improving overall pipeline safety.
- Excellent flexibility allows the pipe system to adapt easily to uneven terrain, ground movement, and complex mining routes.
- HDPE pipes require minimal maintenance over their service life, helping reduce operational downtime and long-term maintenance expenses.
- Combining long service life, easy installation, and reduced maintenance, HDPE mining pipes provide a highly economical solution for mining operations.

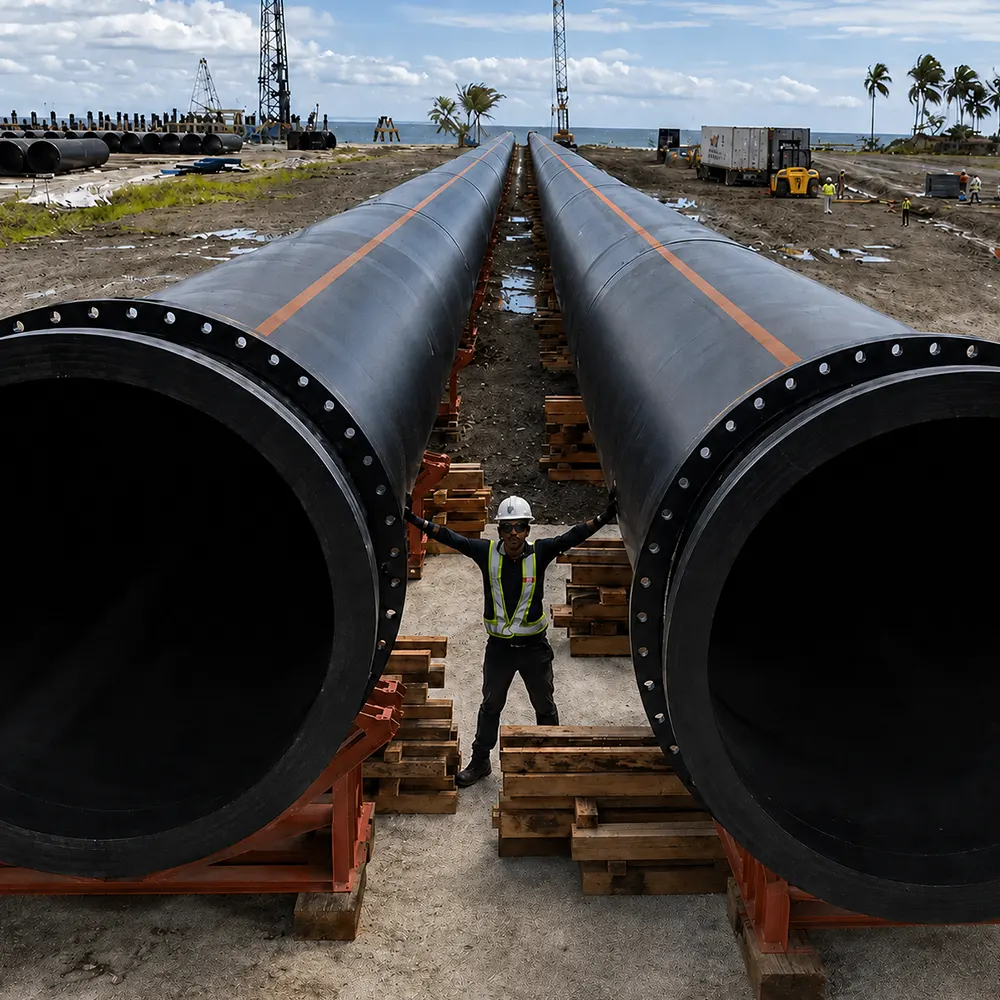

Polyethylene Pipe Application

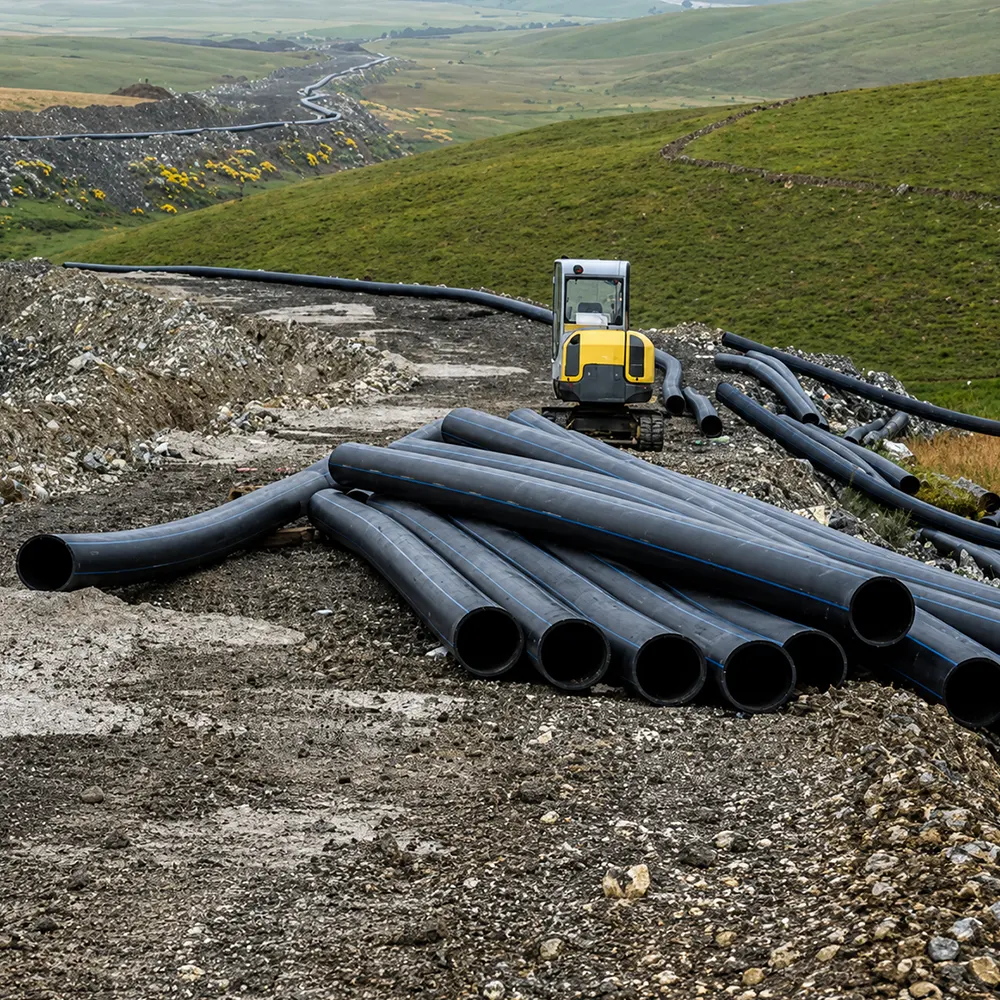

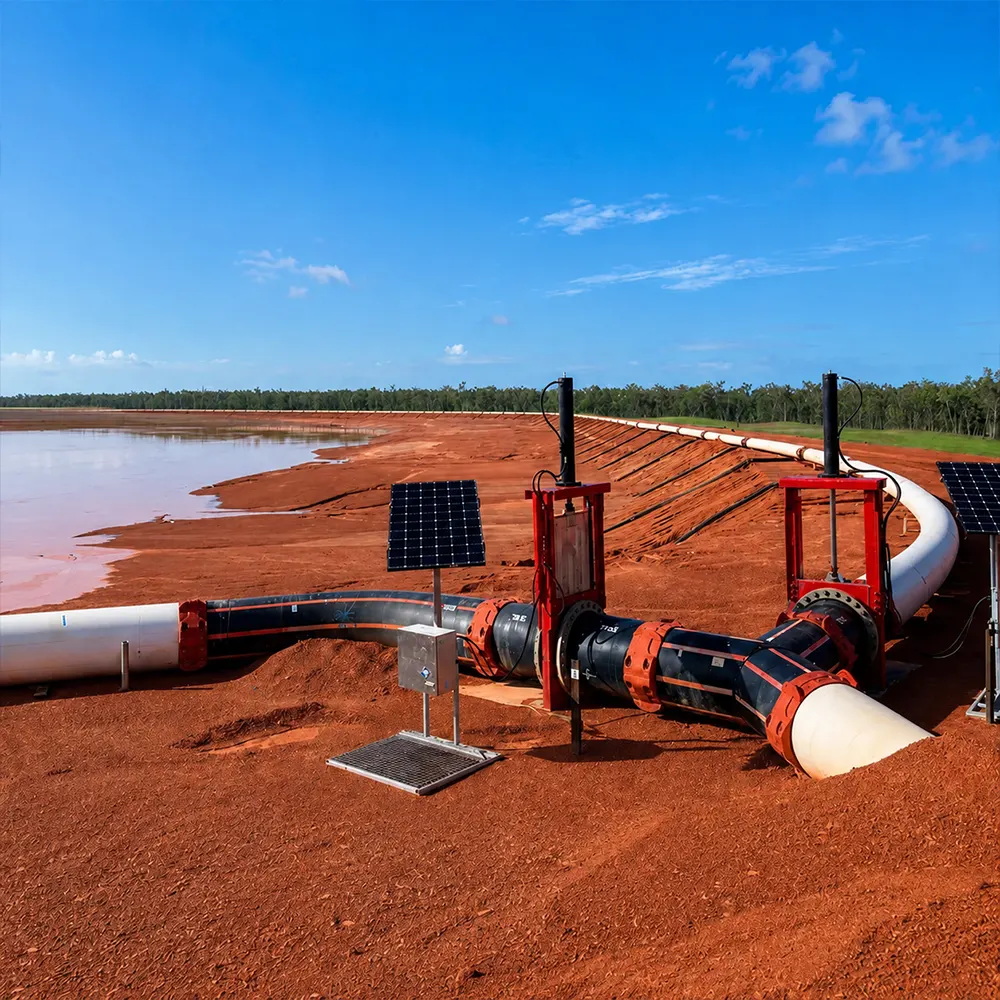

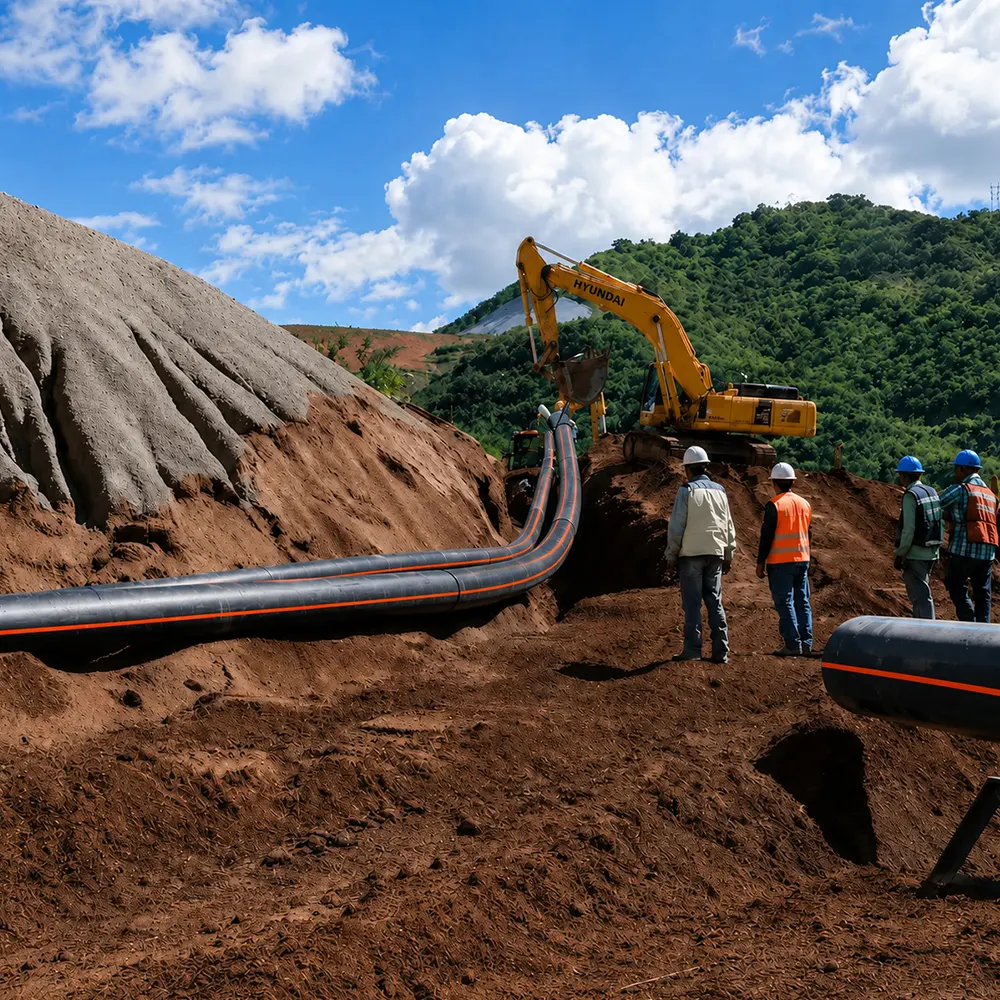

HDPE mining pipes are widely used in mine water supply and drainage, slurry transportation, tailings discharge, mine dewatering, ventilation pipelines, backfill systems, and underground utility lines. With excellent wear resistance, corrosion resistance, flexibility, and strong impact performance, HDPE mining pipe can adapt to harsh working environments such as open-pit mines, underground tunnels, mountainous mining areas, and long-distance slurry or water transmission projects. Compared with traditional metal pipes, HDPE mining pipes are lighter, easier to transport and install, and can reduce construction difficulty in complex terrain. Reliable fusion welding connections also help improve pipeline sealing performance, reduce leakage risks, and support stable operation in mining production, wastewater handling, mineral processing, and tailings management systems.

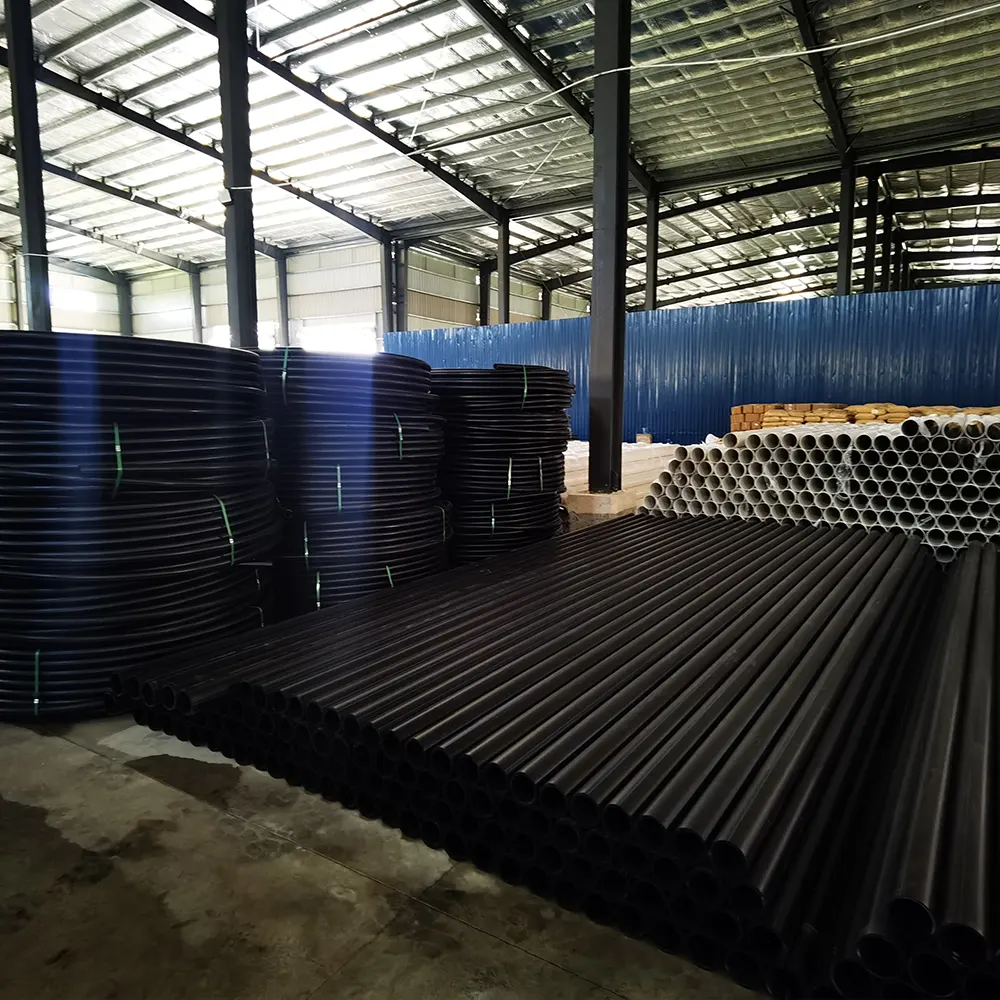

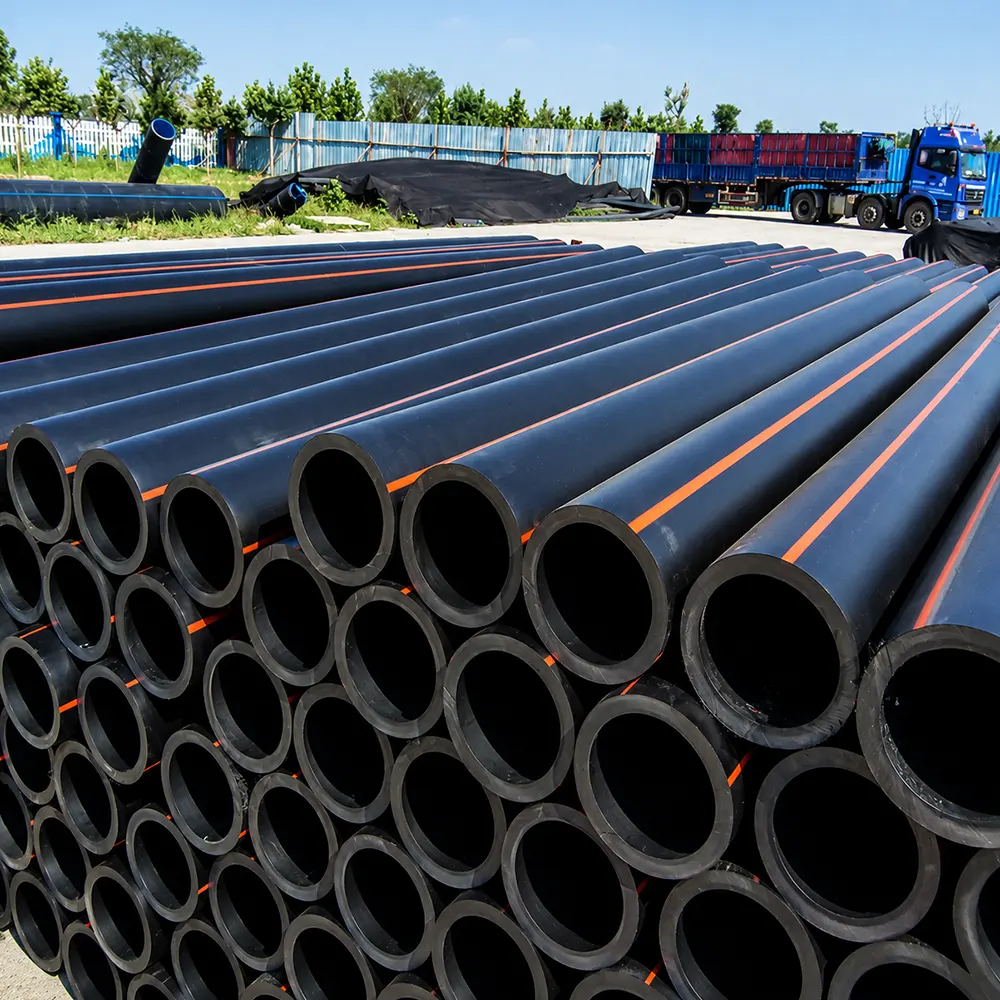

Inventory
JQ maintains stable inventory and efficient production capacity to ensure fast delivery and reliable supply for projects of all sizes. With organized warehouse management, flexible manufacturing, and customization support, we help customers meet demanding project timelines efficiently.

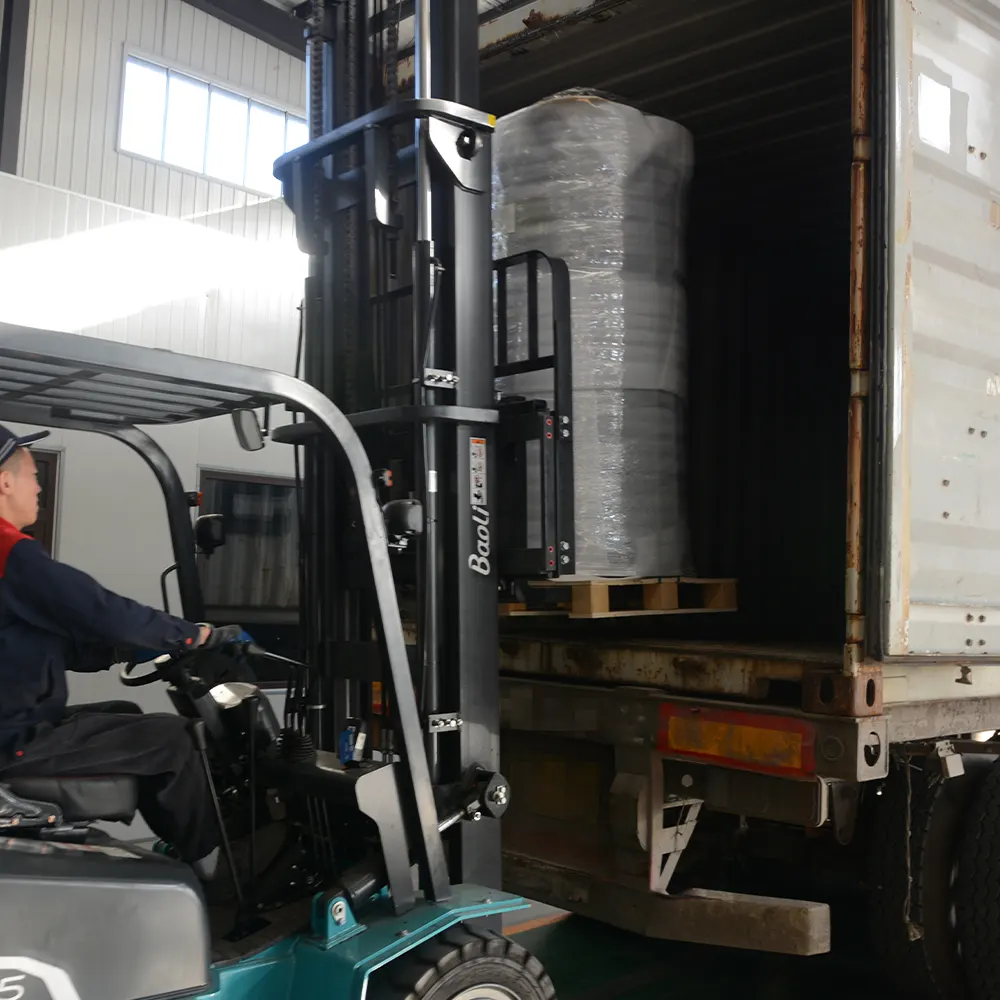

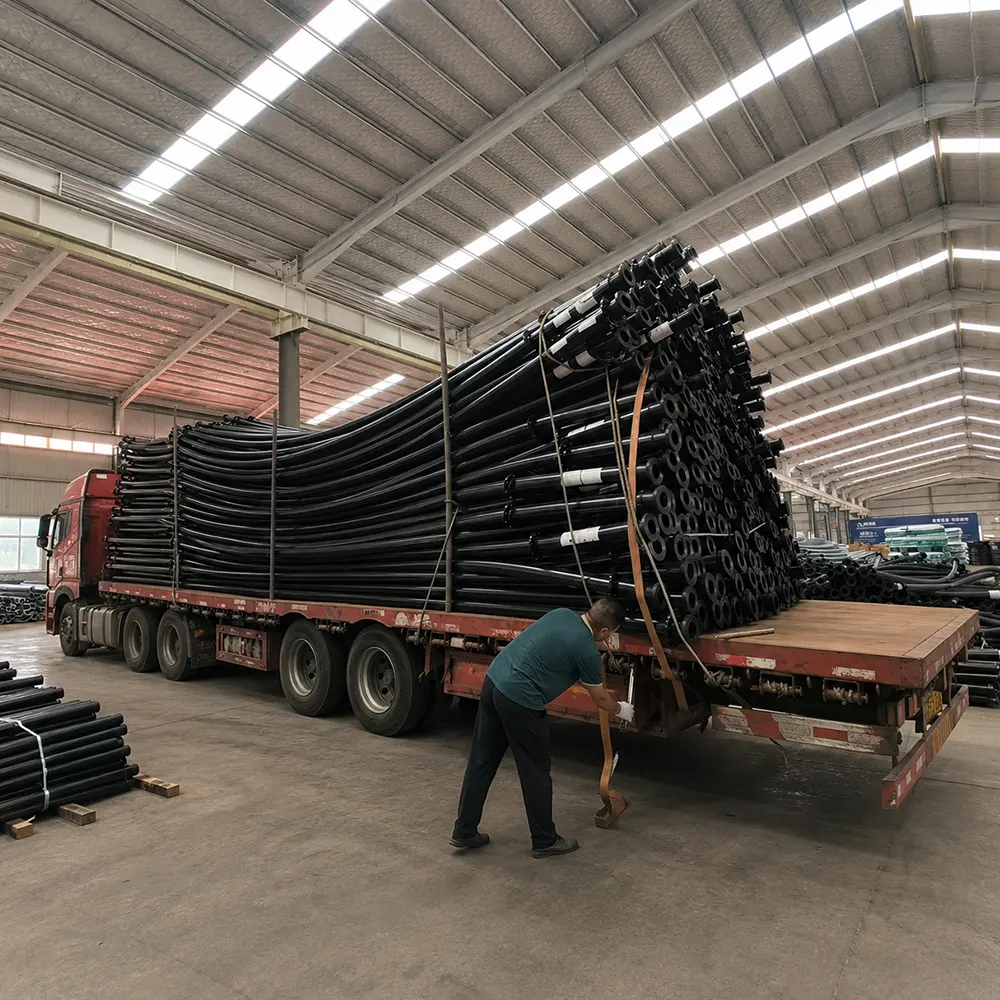

Packaging
JQ provides professional packaging, efficient loading, and reliable transportation solutions to ensure products are delivered safely and on time. With stable inventory and global shipping support, we help customers meet project schedules with confidence.
Certificate
Related Products
HDPE Pipe

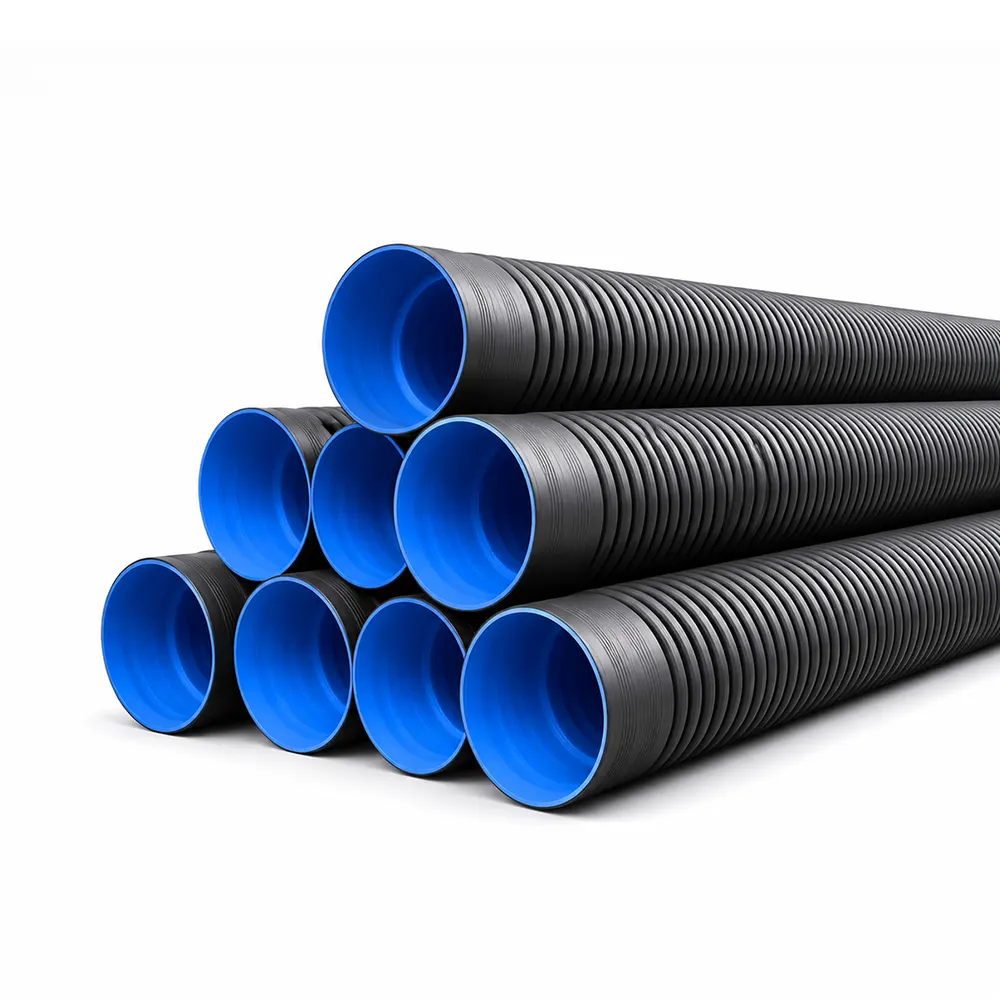

DWC Pipe
PVC Pipe

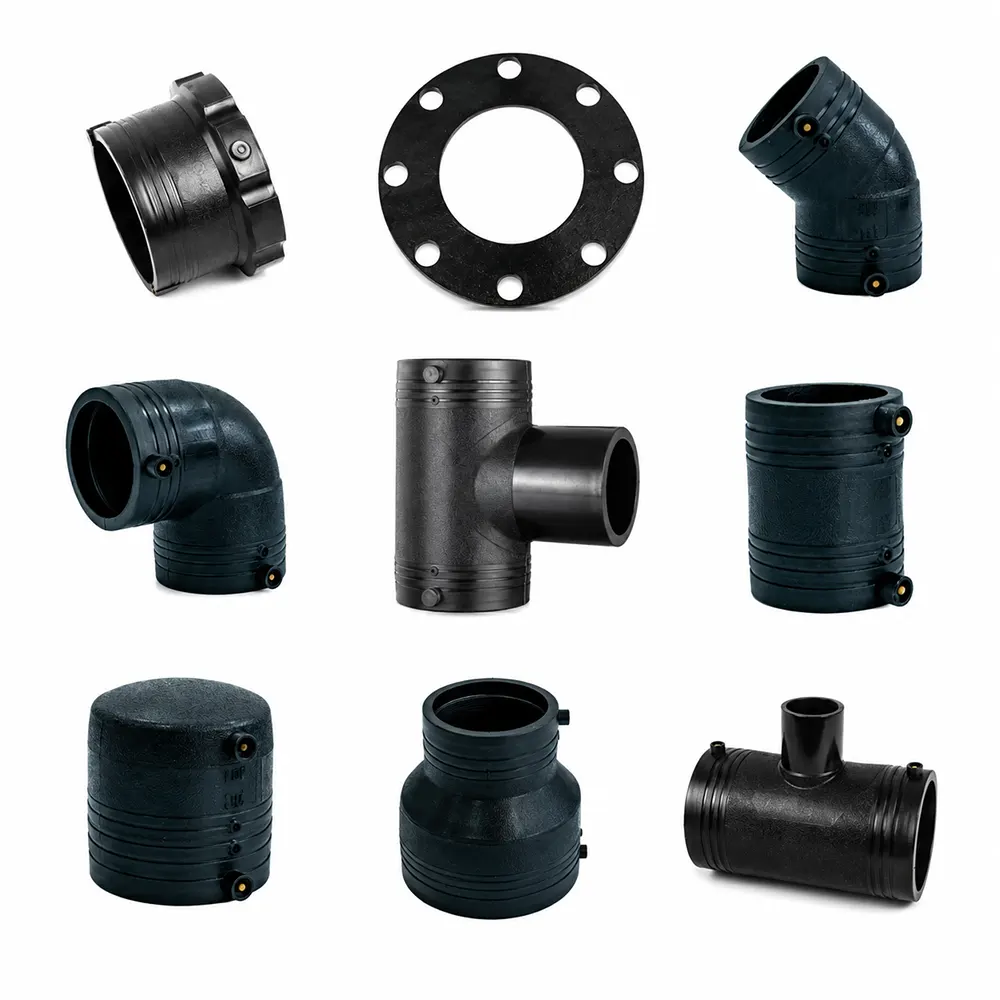

Electorfusion Fittings
