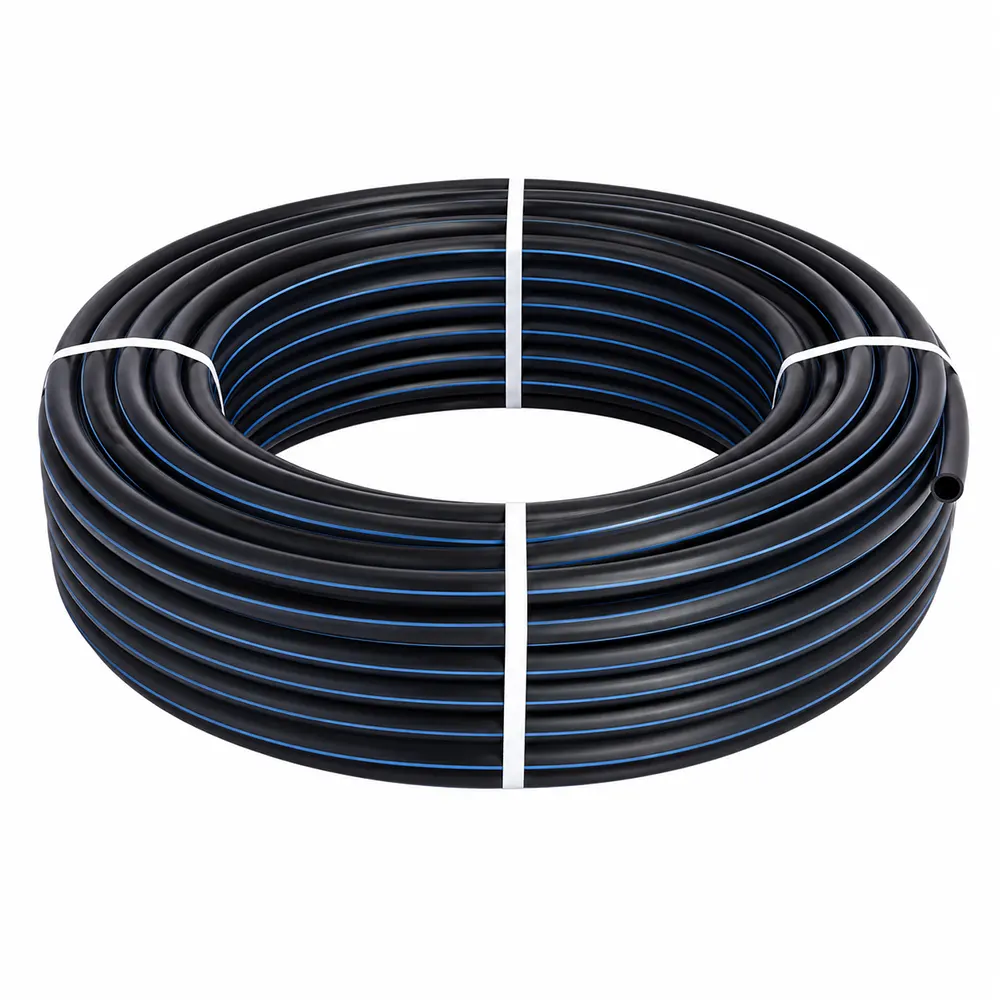

HDPE Irrigation Pipe
HDPE irrigation pipes are high-performance polyethylene piping systems specifically designed for efficient agricultural water transportation and modern irrigation networks. Manufactured from high-density polyethylene material, these pipes offer excellent flexibility, impact resistance, corrosion resistance, and long-term durability, making them suitable for various outdoor and underground installation environments. Their lightweight structure allows easy transportation and installation, helping reduce labor costs and improve construction efficiency in large-scale irrigation projects.With smooth inner surfaces for stable water flow and reliable leak-proof connections, HDPE irrigation pipes help minimize water loss and improve irrigation efficiency. They are widely used in farmland irrigation, drip irrigation, sprinkler systems, orchards, greenhouses, and agricultural water distribution projects. Compared with traditional irrigation materials, HDPE pipes provide lower maintenance requirements, stronger weather resistance, and a service life of over 50 years, making them a cost-effective and sustainable solution for modern agricultural infrastructure.
- Place of Origin: China
- Inventory: In Stock
- Type: HDPE Irrigation Pipe
- Material: High-Density Polyethylene
- Diameter: DN20-2000mm (1/2 inch-80 inch)
- Length: 6m / 9m / 12m or Customized
- Standard: ISO 4427 Standards, AS/NZS 4130 Standards, ASTM Standards
- Price: Negotiation
- Delivery: 7-10 Days Depending on The Total Quantity
- Payment: L/C, T/T, Alipay, Moneygram and Western Union
HDPE Pipe Technical Specifications
| HDPE Irrigation Pipe | S 16 | S 12.5 | S 10 | S 8 | S 6.3 | S 5 | S 4 | S 3.2 | |
|---|---|---|---|---|---|---|---|---|---|
| ASTM F714 SDR | SDR 33 | SDR 26 | SDR 21 | SDR 17 | SDR 13.6 | SDR 11 | SDR 9 | SDR 7.4 | |
| Nominal Pressure (PE 100) | PN5 (0.5MPa) | PN6 (0.6MPa) | PN8 (0.8MPa) | PN10 (1.0MPa) | PN12.5 (1.25MPa) | PN16 (1.6MPa) | PN20 (2.0MPa) | PN25 (2.5MPa) | |
| Nominal Size DN (mm) | Equiv Size (in) | Wall Thickness(mm) | |||||||
| 16 | 2 | 2.3 | |||||||
| 20 | 0.79 | 1.5 | 2 | 2.3 | 3 | ||||
| 25 | 0.98 | 0.76 | 0.8 | 1.2 | 1.5 | 2 | 2.3 | 3 | 3.5 |
| 32 | 1.26 | 0.97 | 1 | 1.5 | 2 | 2.4 | 3 | 3.6 | 4.4 |
| 40 | 1.57 | 1.21 | 1.2 | 2 | 2.4 | 3 | 3.7 | 4.5 | 5.5 |
| 50 | 1.97 | 1.52 | 2 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | 6.9 |
| 63 | 2.48 | 1.91 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 |
| 75 | 2.95 | 2.27 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 |
| 90 | 3.54 | 2.73 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 |
| 110 | 4.33 | 3.33 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | 12.3 | 15.1 |
| 125 | 4.92 | 3.79 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | 14 | 17.1 |
| 140 | 5.51 | 4.24 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 |
| 160 | 6.3 | 4.85 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 |
| 180 | 7.09 | 5.45 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 |
| 200 | 7.87 | 6.06 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 |
| 225 | 8.86 | 6.82 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 |
| 250 | 9.84 | 7.58 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 |
| 280 | 11.02 | 8.48 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 |
| 315 | 12.4 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
| 355 | 13.98 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
| 400 | 15.75 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
| 450 | 17.72 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
| 500 | 19.69 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | 67.6 |
| 560 | 22.05 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | 75.7 |
| 630 | 24.8 | 19.3 | 24.1 | 30 | 37.4 | 46.3 | 57.2 | 70.3 | 85.1 |
| 710 | 27.95 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | 95.9 |
| 800 | 31.5 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | |
| 900 | 35.43 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | ||
| 1000 | 39.37 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | ||
| 1200 | 47.24 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | |||
| 1400 | 55.12 | 42.9 | 53.5 | 66.7 | 82.4 | 102.9 | |||
| 1600 | 62.99 | 61.2 | 76.2 | 94.1 | 117.6 | ||||
| 1800 | 70.86 | 69.1 | 85.7 | 105.9 | |||||
| 2000 | 78.74 | 76.9 | 95.2 | 117.6 | |||||
HDPE Irrigation Pipe Key Features
Flexible Structure
Flexible structure adapts easily to ground movement and complex installations.
Hygienic Material
Food-grade polypropylene material ensures safe and clean water delivery systems.
Smooth Flow
Low friction ensures high flow efficiency and reduces the risk of blockage.
Corrosion Resistance
Made from HDPE, offering excellent resistance to chemicals, acids, and corrosion.

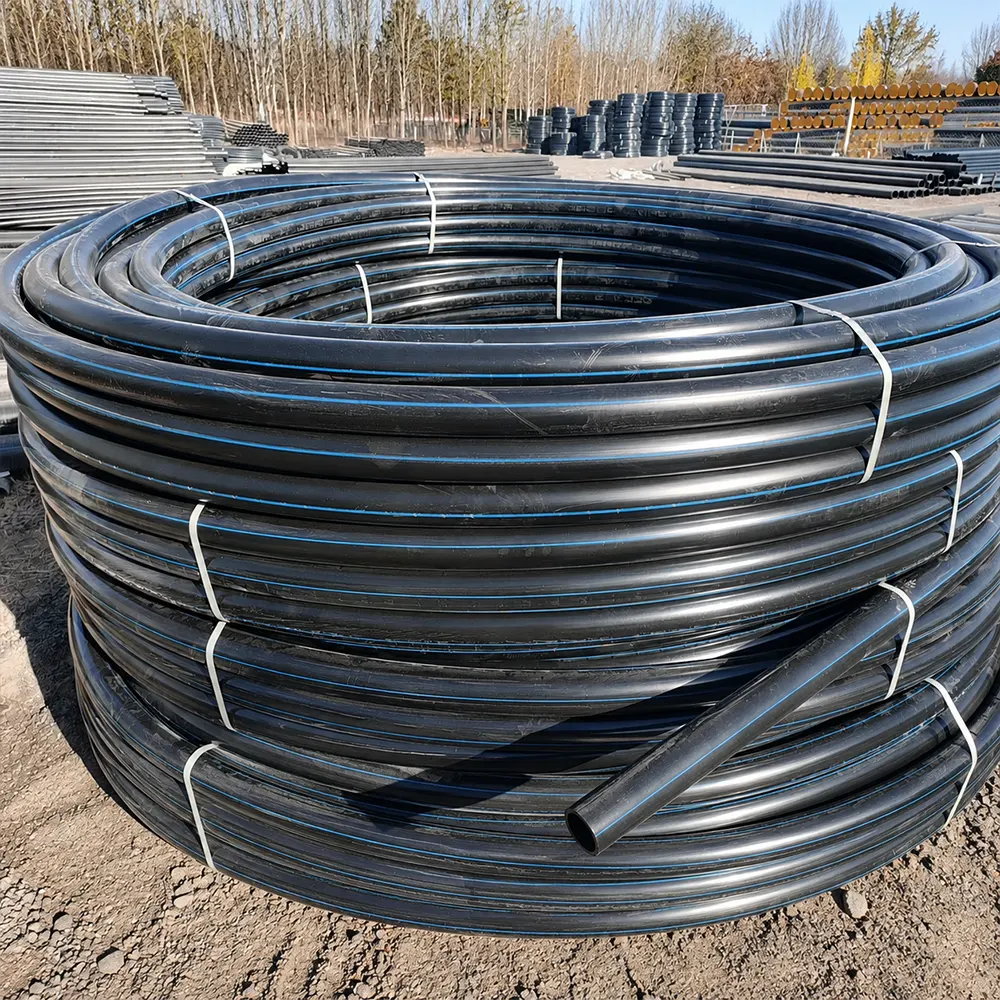

High Density Polyethylene Pipe Advantages
- Leak-proof connections help minimize water waste and improve overall irrigation efficiency.
- Strong UV resistance ensures reliable long-term performance under continuous sunlight exposure.
- Durable material provides excellent resistance to cracking, impact, and external environmental stress.
- Low maintenance requirements help reduce long-term operational and repair costs in agricultural projects.
- Available in various diameters and pressure ratings to meet different irrigation system requirements.
- Long service life supports stable and cost-effective operation for modern agricultural infrastructure.
HDPE Drip Irrigation Pipe Application
HDPE drip irrigation pipes are widely used in modern agricultural water-saving irrigation systems, providing stable and efficient water delivery for farmland, orchards, vineyards, greenhouses, nurseries, and landscaping projects. With excellent flexibility, corrosion resistance, UV resistance, and reliable connection performance, HDPE irrigation pipes can adapt to long-distance water transmission, branch pipe distribution, drip irrigation networks, sprinkler irrigation systems, and complex terrain installations. They help reduce water loss, improve irrigation efficiency, and support long-term agricultural production with lower maintenance costs.

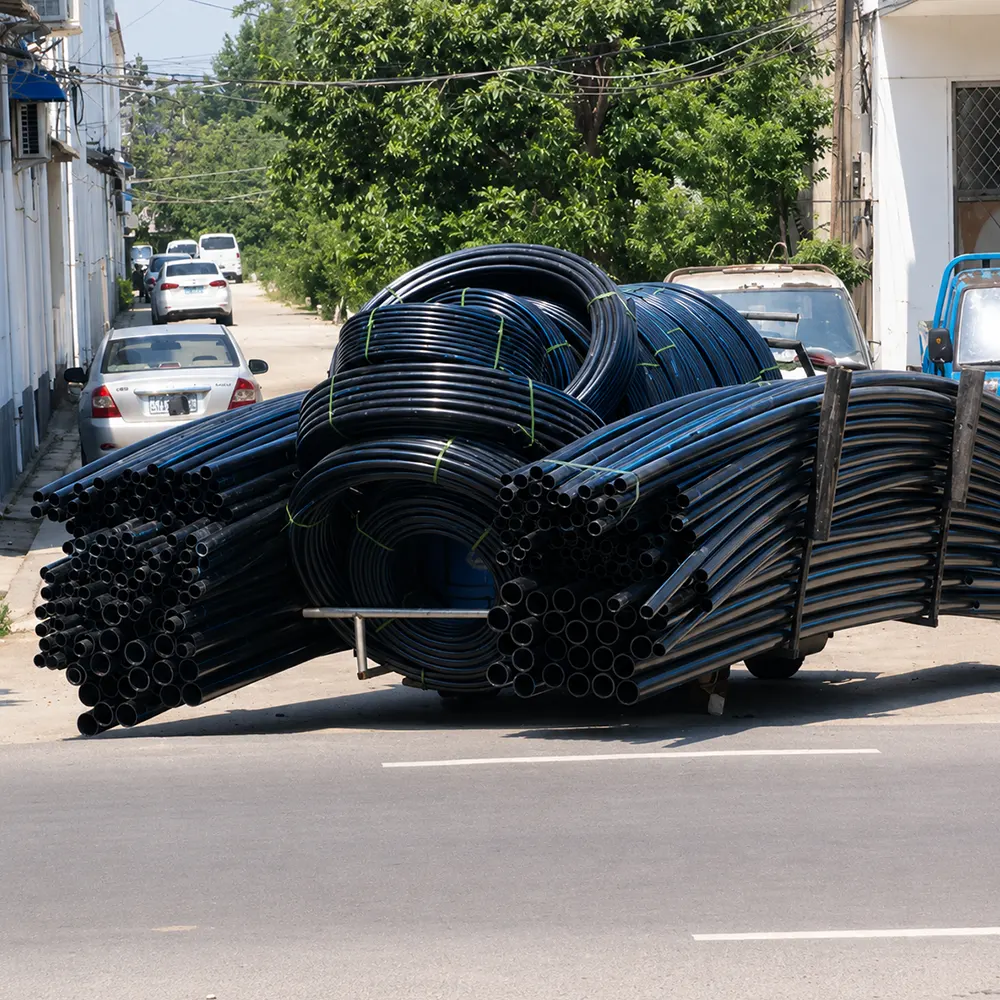

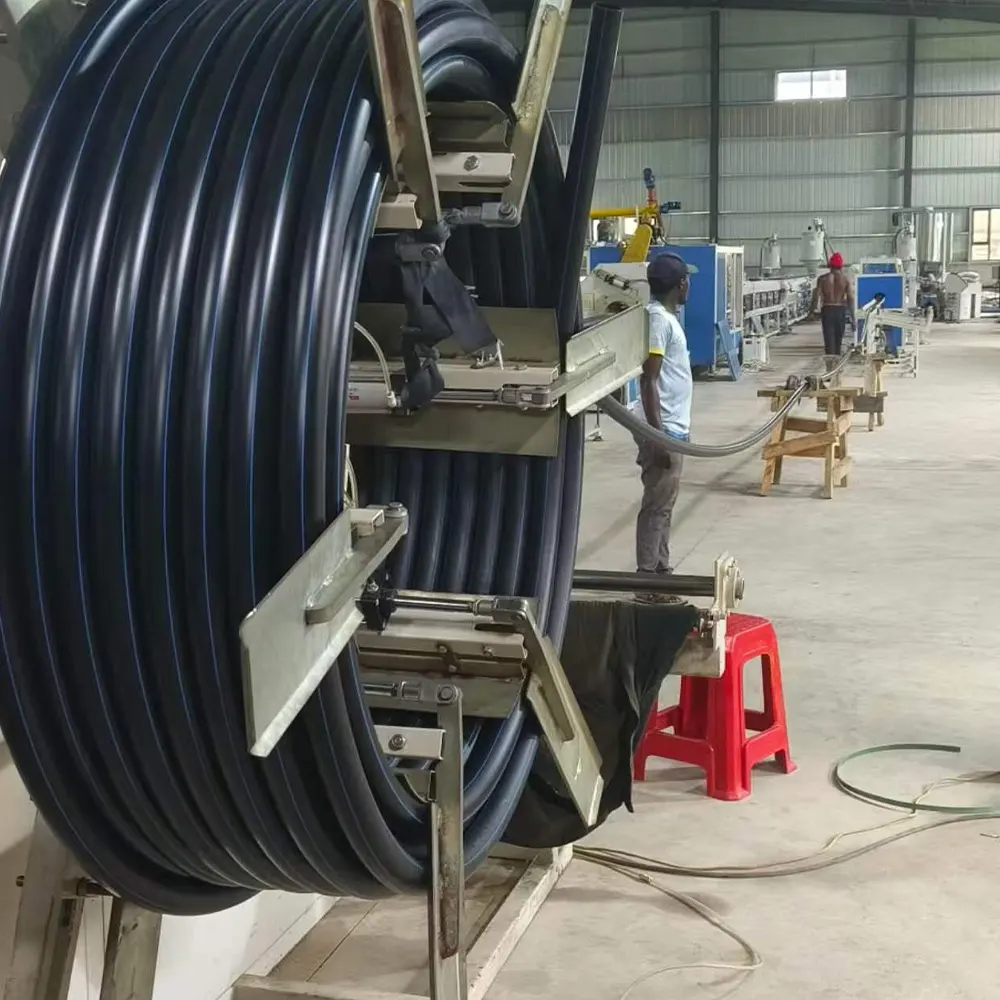

Inventory
JQ maintains stable inventory and efficient production capacity to ensure fast delivery and reliable supply for projects of all sizes. With organized warehouse management, flexible manufacturing, and customization support, we help customers meet demanding project timelines efficiently.
Packaging
JQ provides professional packaging, efficient loading, and reliable transportation solutions to ensure products are delivered safely and on time. With stable inventory and global shipping support, we help customers meet project schedules with confidence.
Certificate
Related Products

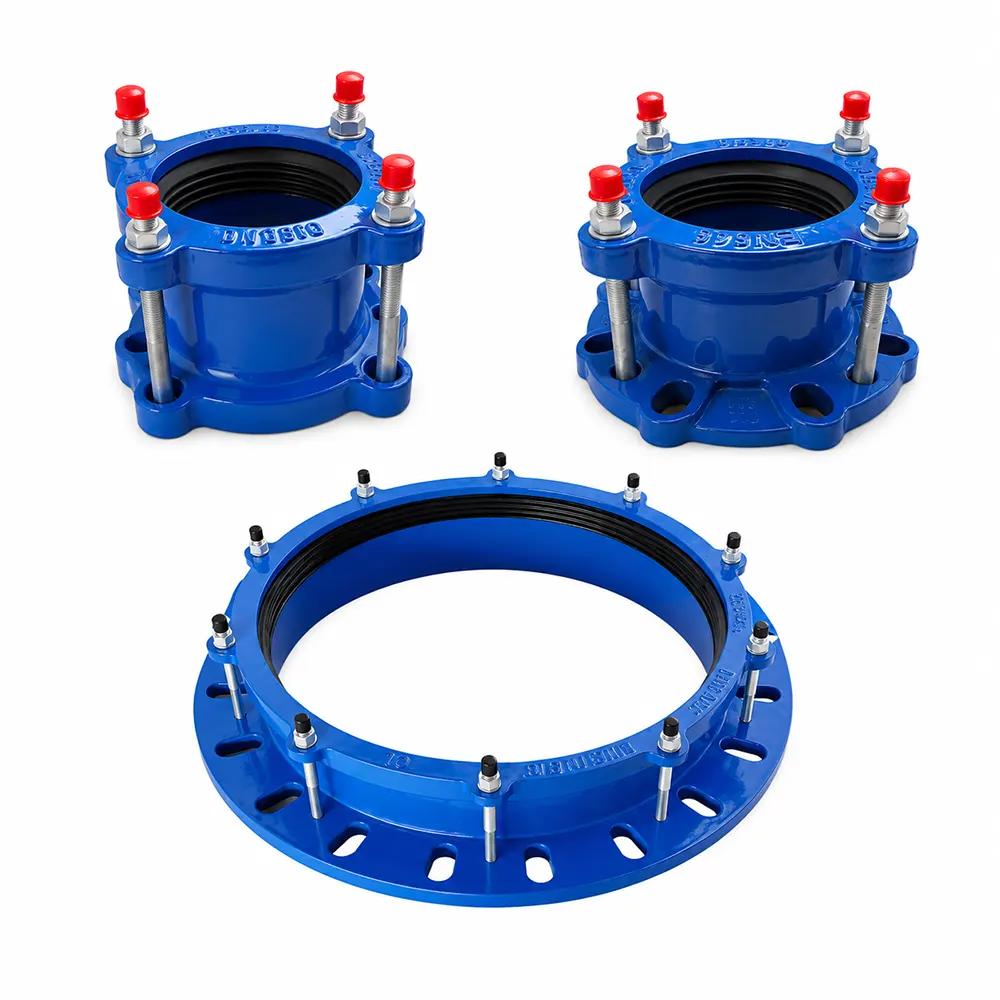

Pipe Joints

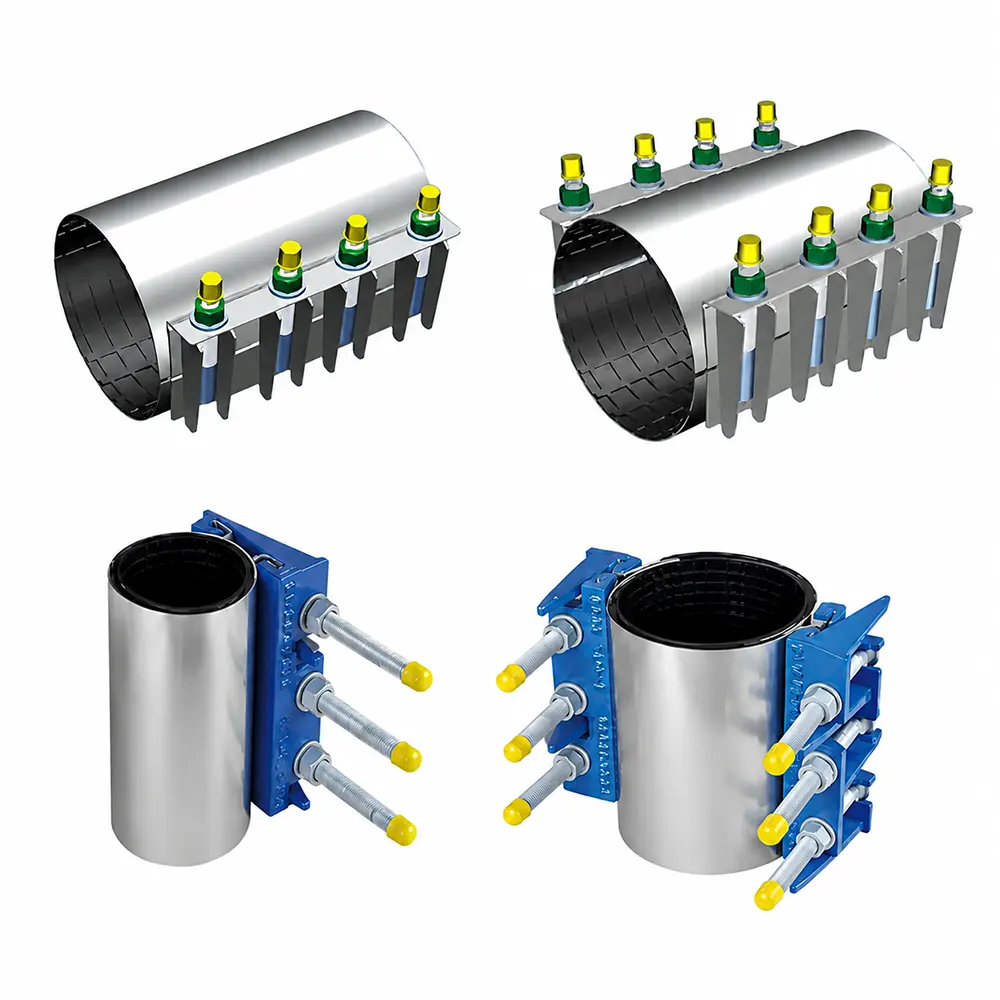

Pipe Repair Clamp
PVC Pipe
HDPE Fittings
We’re Here to Help
Start Your Pipe Project with JQ
Looking for plastic pipe solutions for your project? Share your requirements with us, and our team will help you with product selection, factory-direct pricing, and delivery support.
What We Can Help With
- Large-diameter HDPE pipe quotations
- HDPE pipes and fittings, PPR pipes and fittings
- Krah pipes, DWC pipes, and SWC pipes
- Other Pipe Tools
- Custom sizes, colors, and other specifications
- Bulk orders, tenders, and distributor supply
